Implant Surface Hydrophilicity Evaluation Report

Comparison of Surface Hydrophilicity Among Three Manufacturers' Implants via Water Contact Angle Measurement

Prepared by: Jeonbuk National University College of Dentistry, Dept. of Dental Biomaterials Professor Bae Tae-Seong

1. Background and Purpose of the Test

Titanium (Ti) is a highly reactive metal, so high-quality cutting fluid is used during CNC machining to prevent unwanted reactions. After machining, organic cleaning agents are used to remove the cutting fluid, but some organic residue can remain on the surface during this process. This organic residue renders the surface hydrophobic, reducing its reactivity with water and consequently delaying early bone formation (osseointegration).

Therefore, to promote osseointegration it is important to remove residual organic matter from the surface and improve its hydrophilicity. Representative methods used for this purpose include ultraviolet (UV) treatment, low-temperature plasma treatment, and femtosecond laser treatment.

This report aims to compare the surface hydrophilicity levels of implant products from three domestic and international manufacturers (Doiff, Osstem, Straumann) by measuring water contact angle, and to examine the change in contact angle before and after UV treatment. It also summarizes the principles of contact angle measurement, the osseointegration reaction mechanism of titanium implants, and the mechanism of surface hydrophilization by UV treatment, in order to aid understanding of the test results.

1.1 Principles of Water Contact Angle and Surface Hydrophilicity

Contact angle is defined as the angle formed between the surface of a water droplet placed on a solid surface and the solid surface itself, and is determined by the surface's chemical composition, surface energy, and micro-roughness. On a hydrophilic surface, the water droplet spreads widely, resulting in a small contact angle, whereas on a hydrophobic surface, the water droplet does not spread well, resulting in a relatively large contact angle.

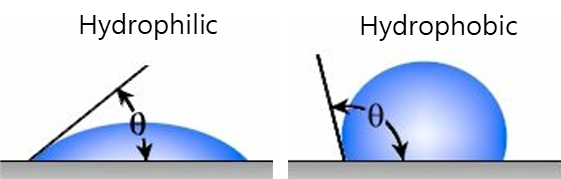

Figure 1. Conceptual diagram of water contact angle on hydrophilic and hydrophobic surfaces

1.2 Titanium Implant Surface and Osseointegration Reaction Mechanism

The surface of a titanium implant naturally forms a thin oxide layer (TiO2) in air, and this oxide layer surface contains both acidic hydroxyl groups (bridging OH) and basic hydroxyl groups (terminal OH). Because of this, the Ti surface can bind relatively easily with both acidic and basic bone-related adhesion proteins, which is known to enable faster osseointegration compared to other metals. The more hydrophilic the surface, the smoother the initial wetting and reaction with bodily fluids and proteins, allowing the reactivity of these hydroxyl groups to be fully expressed.

Figure 2. Schematic diagram of the binding of acidic/basic hydroxyl groups on the Ti/TiO2 surface with bone-related proteins

2. Test Materials and Methods

2.1 Test Materials

2.2 Test Method

• A droplet of water was placed on the SLA-treated implant surface, and the contact angle was measured 30 seconds after application.
• For each sample, the contact angle was measured both before UV treatment and after 24 hours of UV treatment, and the results were compared.
• Contact angle is an indicator of the degree of hydrophilicity/hydrophobicity: on hydrophilic materials, the water droplet spreads widely, resulting in a small contact angle, while on hydrophobic materials, the water droplet does not spread well, resulting in a large contact angle.

2.3 Background on the Formation of Organic Contaminants on the Implant Surface (CNC Machining Process)

In general, machined Ti implants are manufactured in the following order: CNC precision machining using cutting fluid → cleaning with an organic detergent → sterilization. During this process, the surface is finished relatively smoothly, but hydrophobic organic molecules derived from the cutting fluid and cleaning agents tend to adsorb and bond to the surface, increasing the contact angle. Therefore, a post-treatment process to decompose and remove these adsorbed organic molecules is required to improve wettability and promote osseointegration.

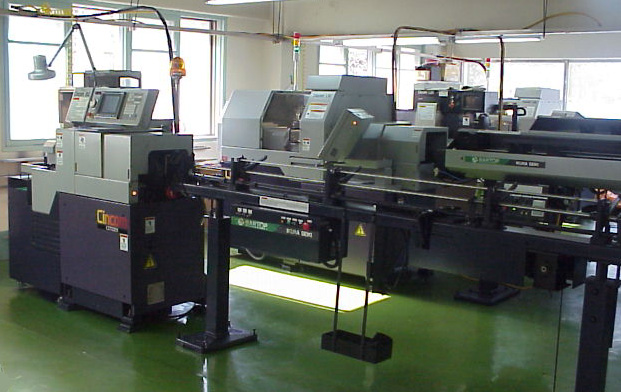

Figure 3. Ti implant CNC precision machining equipment (machining process using cutting fluid)

2.4 Mechanism of Surface Hydrophilization by UV Treatment

When the TiO2 on the SLA-treated implant surface absorbs UV light at 387 nm or shorter wavelengths, a photocatalytic reaction generates holes (h+) and free electrons (e-). The generated holes react with water molecules adsorbed on the surface to form hydroxyl groups (terminal -OH), and through strong oxidation, decompose and remove residual organic matter on the surface (C=C, C=O, C-H bonds, etc.). Meanwhile, the free electrons react with oxygen to generate reactive oxygen ions, which exhibit strong bactericidal action and also contribute to improved biocompatibility. In addition, when surface contaminants are removed and micro-roughness is formed through grit-blasting and acid-etching (SLA) treatment, the surface area and surface energy increase, and when combined with UV or low-temperature plasma treatment, a near-superhydrophilic surface can be obtained.

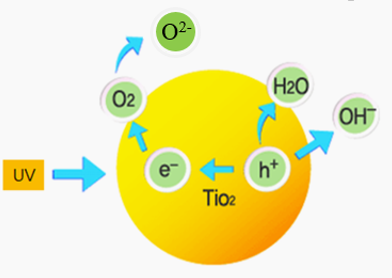

Figure 4. Mechanism of decomposition and removal of organic contaminants via the UV photocatalytic reaction on the TiO2 surface

3. Test Results

3.1 Contact Angle Comparison of SLActive Implants versus Pure Ti Plate (Reference Data)

Prior to this test, to estimate the range of contact angles according to the degree of surface treatment, the contact angle of a pure Ti plate polished with #1000 SiC abrasive paper, cleaned and dried, was compared with that of an SLActive Ti implant that had been grit-blasted and acid-etched (SLA) and specially stored. The polished Ti plate showed a contact angle of 42.3°, while the SLActive Ti implant showed 0°, indicating superhydrophilicity. This is explained by the increase in surface energy due to removal of surface contaminants and formation of micro-roughness through grit-blasting and acid-etching, and by the decomposition and removal of hydrophobic organic contaminants in the low-temperature plasma storage environment. This result serves as a reference standard for estimating the relative range (0°~100°) within which the contact angles of the three manufacturers' products fall.

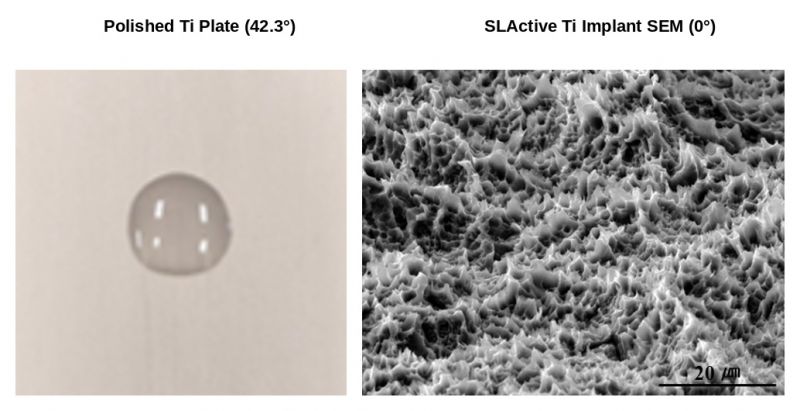

Figure 5. Comparison of the polished Ti plate (contact angle 42.3°) and SEM image of the SLActive Ti implant surface (contact angle 0°, superhydrophilic)

3.2 Results of Contact Angle Measurement Before and After UV Treatment for the Three Manufacturers' Implants

The results of water contact angle measurement before and after UV treatment for the three manufacturers' implants are as follows.

According to the measurement results, the Doiff (OBL) product showed 75.68° before UV treatment and 63.89° after 24 hours of UV treatment, the lowest contact angle among the three companies' products both before and after treatment. In comparison, Straumann measured 82.30°→78.69°, and Osstem measured 97.29°→97.15°, maintaining relatively higher contact angles than Doiff.

3.3 Contact Angle Measurement Photos by Manufacturer

The following are photographs of the actual contact angle measurements before and after UV treatment, taken by dropping water droplets onto the implants of the three manufacturers. The degree of droplet spreading (contact angle) can also be visually compared.

① Osstem

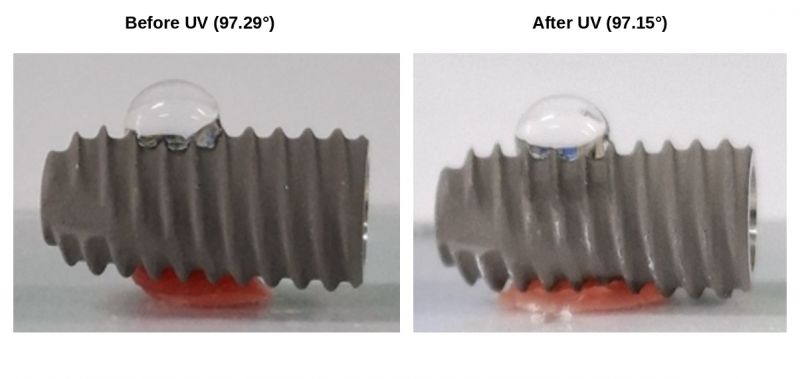

Figure 6. Comparison photo of Osstem implant contact angle before (97.29°) and after (97.15°) UV treatment

② Doiff (OBL)

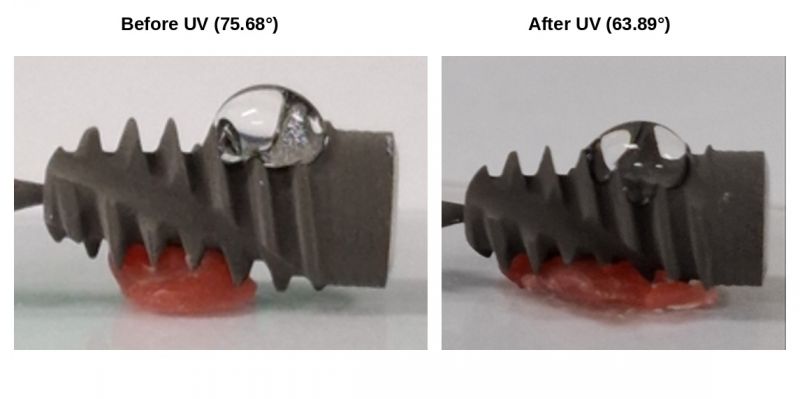

Figure 7. Comparison photo of Doiff (OBL) implant contact angle before (75.68°) and after (63.89°) UV treatment — the lowest contact angle among the three companies both before and after treatment

③ Straumann

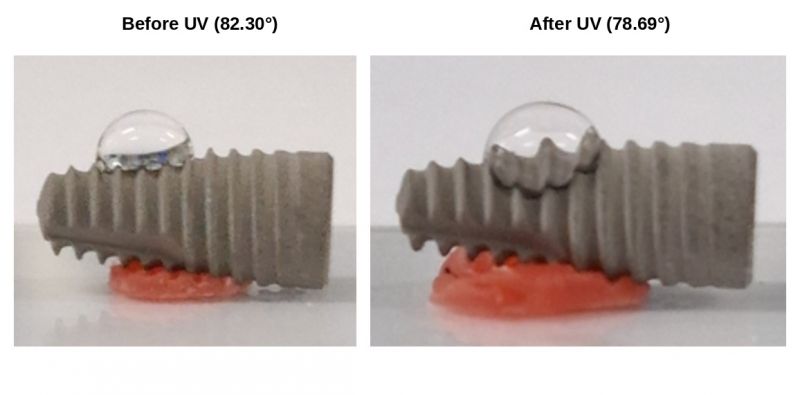

Figure 8. Comparison photo of Straumann implant contact angle before (82.30°) and after (78.69°) UV treatment

3.4 Overall Comparison of the Three Implant Types

The contact angles before and after UV treatment for the three manufacturers' products are compared side by side below. It can be visually confirmed that the water droplet on the Doiff (OBL) product spreads more widely on the surface compared to the other two companies.

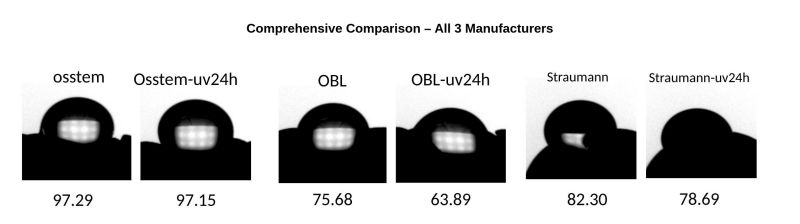

Figure 9. Overall comparison of contact angles before and after UV treatment for the three implant types (Osstem, Doiff/OBL, Straumann)

4. Discussion and Conclusion

• A lower contact angle indicates better surface hydrophilicity; in this test, the Doiff implant was confirmed to have the best hydrophilicity among the three companies' products (see Figures 6~9).
• In particular, after 24 hours of UV treatment, the contact angle of the Doiff product was 63.89°, significantly lower than that of Osstem (97.15°) and Straumann (78.69°) under the same conditions, indicating that the hydrophilicity improvement effect from UV treatment was the greatest among the three companies.
• This UV treatment effect can be explained by the TiO2 photocatalytic reaction summarized earlier in Section 2.4, namely the oxidative decomposition of surface organic matter by holes and the generation of reactive oxygen species by electrons.
• Hydrophilic surfaces are known to enhance early reactivity with bodily fluids and bone-related proteins, thereby promoting osseointegration, and as discussed in Section 1.2, this reaction proceeds more smoothly as the acidic and basic hydroxyl groups on the Ti/TiO2 surface are more fully exposed. Therefore, these results suggest that the Doiff implant has surface characteristics that are relatively favorable in terms of early osseointegration response.
• However, this test is based on a single measurement at room temperature, so additional surface analysis (such as SEM-EDS) and evaluation linked to in vivo studies are needed to make a final determination of clinical osseointegration performance.
